Stone carving machine

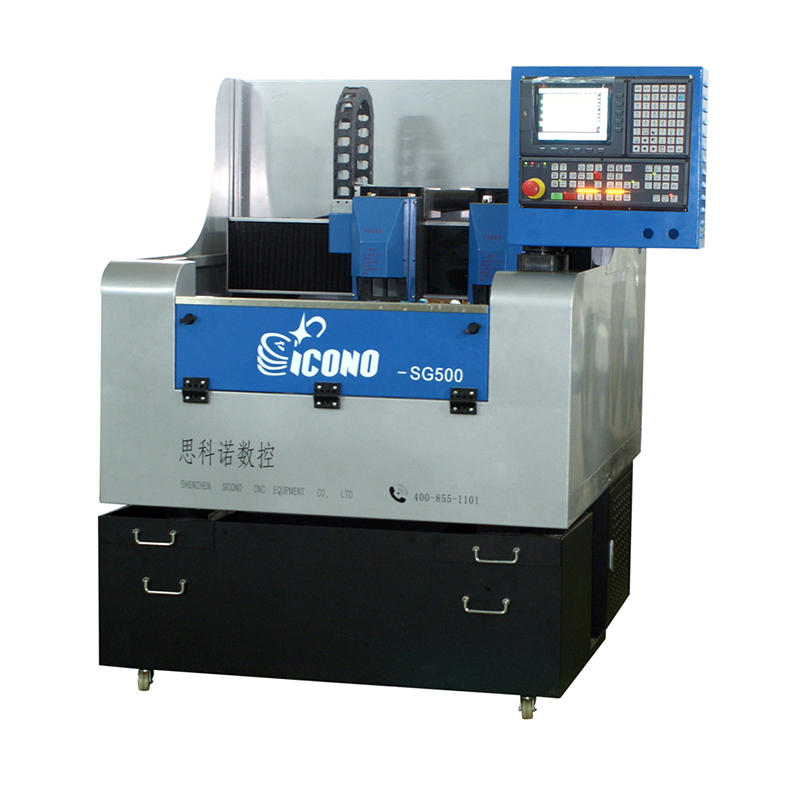

Sg500 glass carving machine

Product description: Sg500 glass carving machine Performance features: Sg500 glass carving precision engraving machine is used for grinding holes and shape processing of glass and ceramic plate, PC, acrylic, pet win
INQUIRY

Technical Parameters
model	SG500	Spindle speed	12000~60000rpm
X,Y stroke	340*500	Spindle power	1.2KW
Z stroke	80mm	Moving speed	12m/min
Workpiece width/height	700*500mm	Instruction format	NC-Code.G-code
Step	0.008mm	servo motor	Panasonic Servo
Knife speed	6M/min	Control System	Taiwan Baoyuan, Weihong, New Generation
power supply	220V	Interface method	USB

PREVIOUS：Spd-400 Mini engraving machine NEXT：SP500 single head carving machine
