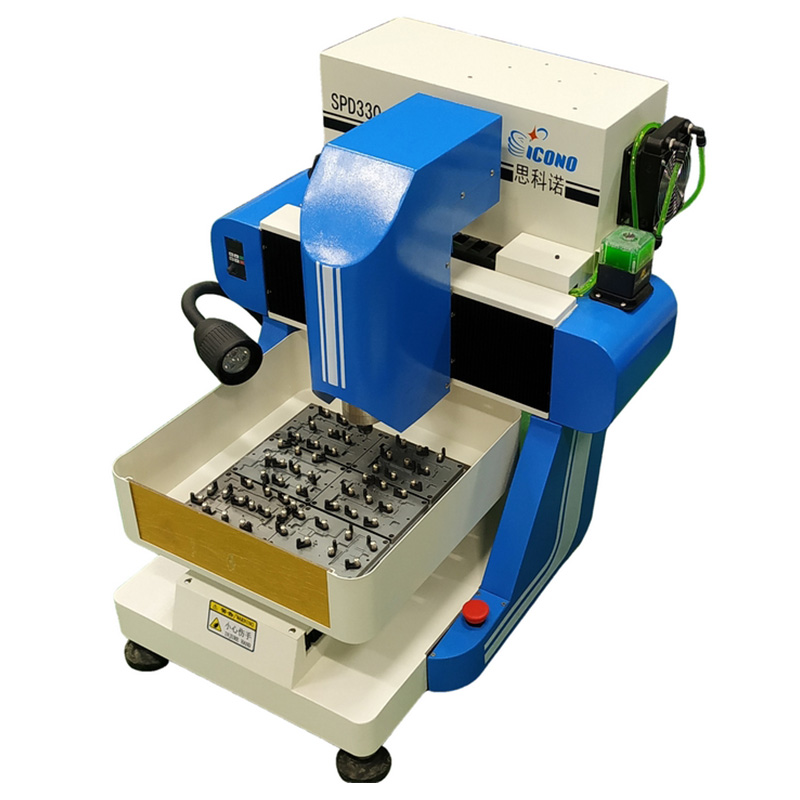

MINI CNC Engraving Machine

Sic-330 small engraving machine chip grinding machine

Product description: Sic-330 engraving machine Performance features: This machine is a mini engraving machine, which can be widely used in metal grinding, metal grinding, chamfering, plastic processing and molding,
INQUIRY

Technical Parameters
model	SIC-330	Spindle speed	6000~24000RPM
X,Y stroke	300*300mm	Spindle power	0.8KW or 1.5KW frequency conversion water-cooled spindle motor
Z stroke	90mm	Tool diameter	￠3.175mm, ￠4mm,￠6mm
Workpiece width/height	340X100 mm	Instruction format	NC-Code.G-code
Step	0.0125mm	Drive System	32-bit high-performance micro-segment Lexai driver
Knife speed	0-7000mm/min	Control System	DSP control system
power supply	AC220V, 50Hz-60Hz	Interface method	COM

Features:
1. Integral precision casting body without deformation.
2. Equipped with a nut screw made in Germany, with high precision and wear resistance.
3. Imported square linear guide rails ensure the accuracy of the machine and can withstand large loads.
4. Precisely ground cast aluminum T-slot, with strong rigidity and high precision, without the need for plywood.
5. The working platform is equipped with a half-open dust cover, independent patent design, easy to disassemble, and excellent effect.
6. Independently developed MACH3 operation panel, synchronized with computer control in real time, convenient operation and beautiful structure.
7. Optional accessories such as rotating shaft, vacuum adsorption platform and cooling.
