| Technical Parameters | |||
| model |

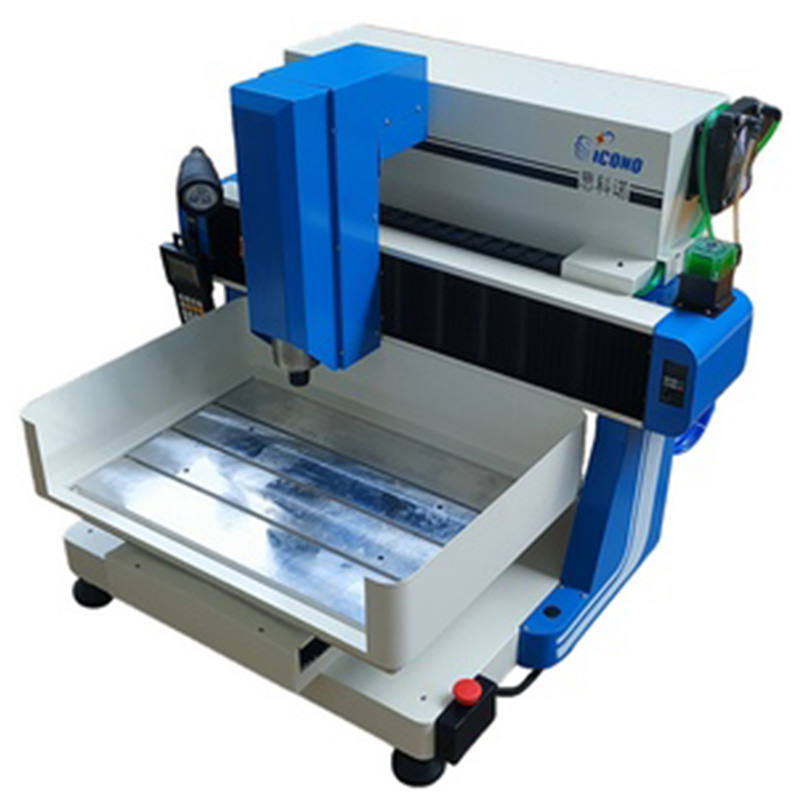

SPD-6040 |
Spindle speed |
8000-24000RPM |
| X,Y stroke |
600mm*400mm |
Spindle power |
1.5KW or 2.2KW frequency conversion water-cooled spindle motor |
| Z stroke | 95 | Tool diameter | 12 |
| Workpiece width/height | 630*100 | Instruction format |
NC-Code.G-code |
| Step | 0.0125 | Drive System | |
| Knife speed | 0-7000mm/m | Control System | DSP |
| power supply | AC220 | Interface method |
COM |
